In Barn: Schiit Bifrost Multibit DAC

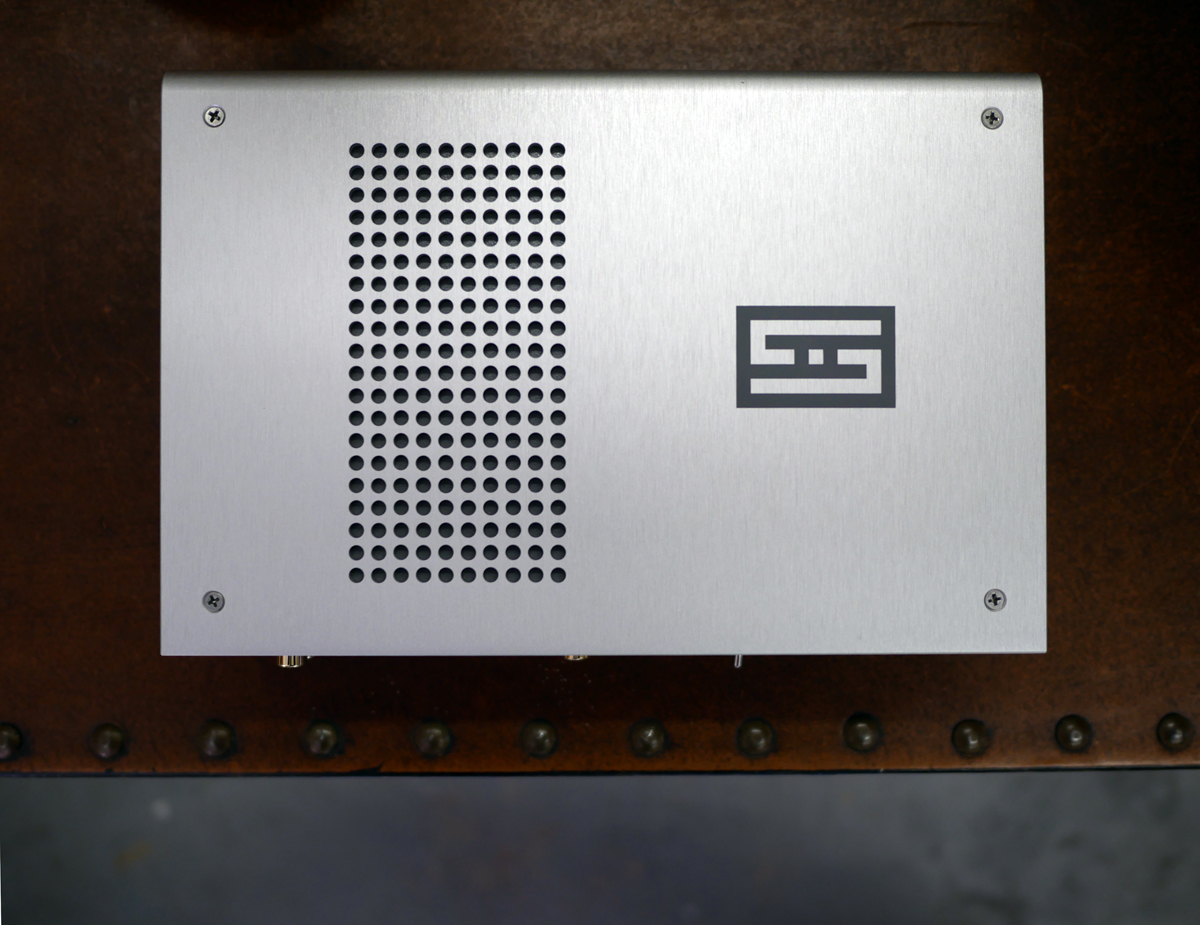

Schiit Bifrost Multibit DAC ($599).

Specifications

D/A Conversion IC: Analog Devices AD5547CRUZ
Digital Filter: proprietary Schiit bitperfect closed-form digital filter implemented on Analog Devices SHARC DSP processor
Analog Stage: precision I/V converter and output buffer based on AD8512

Frequency Response: 20Hz-20KHz, +/-0.1dB, 2Hz-150KHz, -1dB
Maximum Output: 2.0V RMS

THD: <0.005%, 20Hz-20KHz, at max output
IMD: <0.008%, CCIR S/N: >109dB, referenced to 2V RMS

Inputs: Coaxial SPDIF, Optical SPDIF, USB
Input Capability: up to 24/192 for all inputs, including 24/176.4
Input Receiver, SPDIF: AK4113, USB: C-Media CM6631A with electromagnetic and electrostatic isolation

Output: RCA (single-ended)
Output Impedance: 75 ohms

Power supply: 5 stages of regulation, including separate supplies for critical digital and analog sections.

Upgradability: Separate, modular USB Input Card and DAC/Analog Card are snap-in replaceable.

Power Consumption: 12W
Size: 9 x 6.75 x 2.25”
Weight: 5 lbs
