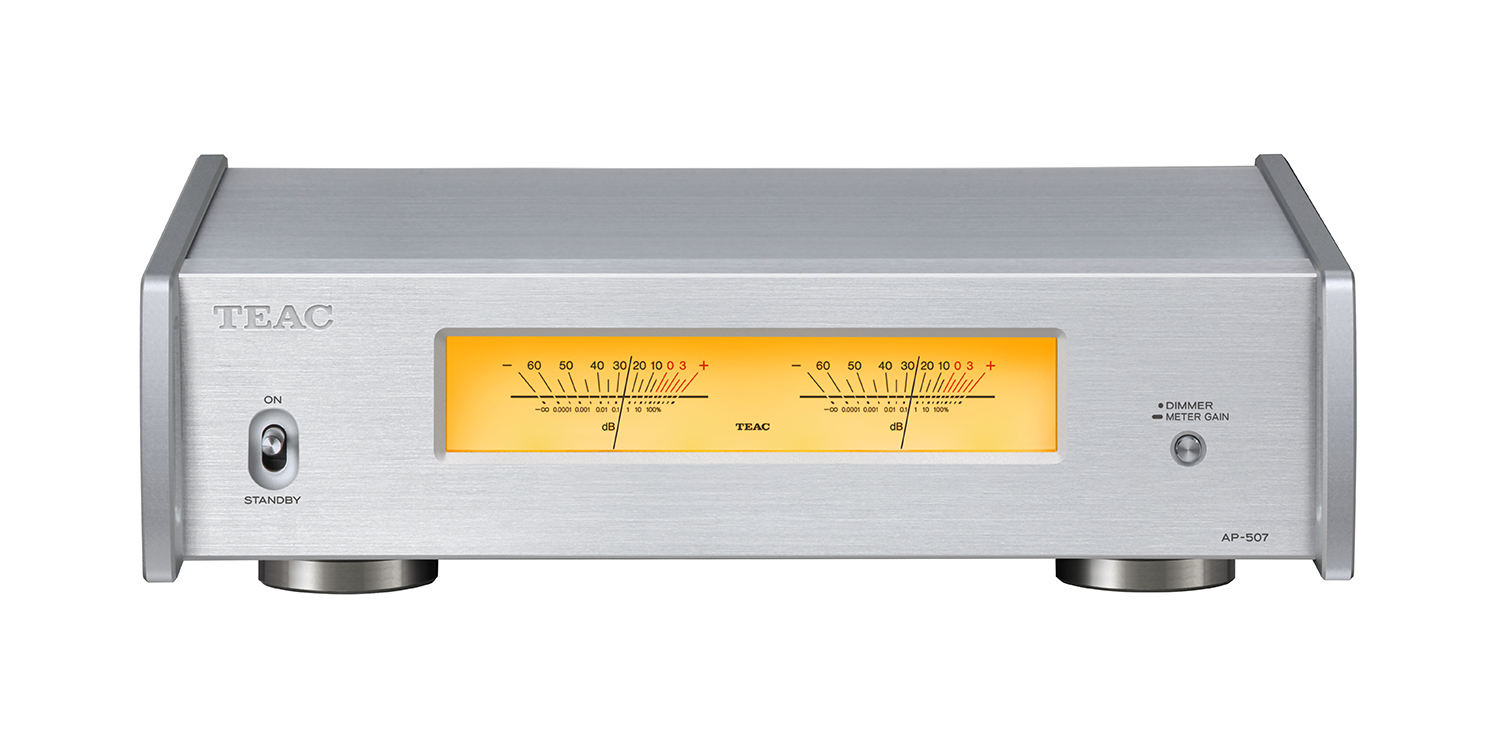

TEAC’s new AP-507 Stereo Amplifier measures 11.5″ across, weighs in at 9.75lbs. and puts out 70 Watts into 8 Ohms. Can you guess one thing that’s inside?
From the press release, “The AP-507 is equipped with TEAC’s own custom tuned new generation ‘NCOREx®’ power amplifier module manufactured by Hypex in the Netherlands.” Aha!

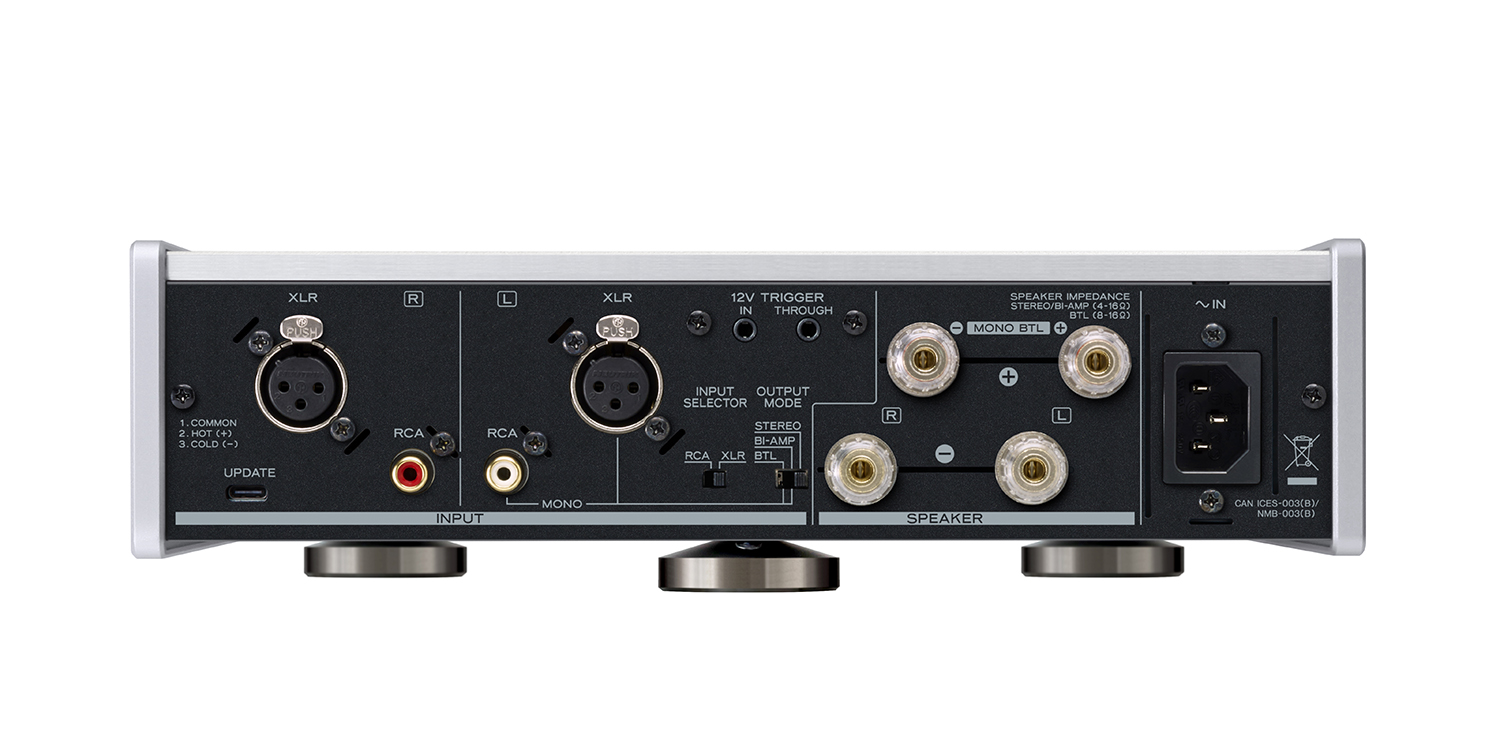

The AP-507 also offers BTL Mode (Bridge Tied Load) where you ‘tie’ the dual speaker outputs together for each channel if you want to up that power output to 350 Watts into 8 Ohms. Inputs include balanced XLR and single ended RCAs and as you can see there are small switches on the unit’s rear panel to select between them as well as Output Mode that also includes Bi-Amp for double the pleasure, double the fun.

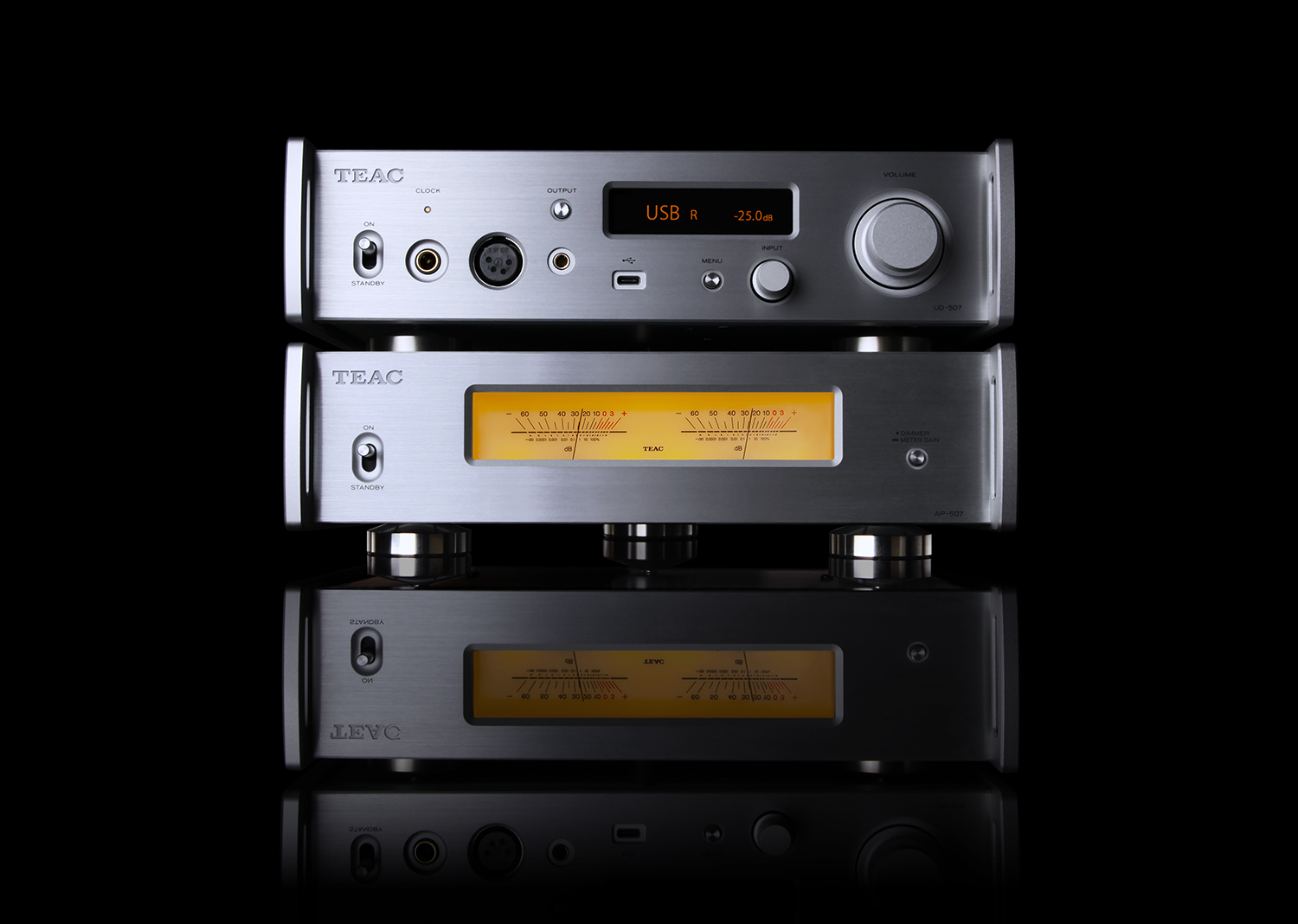

The AP-507’s chassis is made from aluminum and steel and houses, among other things, a “Large toroidal transformer and 18,800 μF capacitors par channel.” This chassis, which comes in black or silver, is a perfect mate for other TEAC 500 Series components like the multi-talented UD-507 USB DAC/Headphone Amplifier/Preamp.
The TEAC the Reference 500 Series AP-507 Stereo Power Amplifier will be available in the Spring (2025) and comes with an asking price of $2199.
Here’s the press release from TEAC:
TEAC Launches the Reference 500 Series stereo power amplifier AP-507
Tokyo, JP (February 12, 2025) — TEAC, a global leader in premium audio since 1953, is proud to announce the AP-507, the Reference 500 series compact stereo power amplifier with Hypex NCOREx® TEAC custom module. Available in black and sliver finishes, The AP-507 joins a comprehensive ecosystem of 500 Series components designed to give music enthusiasts complete control and flexibility in building or fine-tuning their home audio systems.
Small Footprint, Big Possibilites
The AP-507 is a stereo power amplifier from the Reference 500 series, TEAC’s premium compact hi-fi components with A4 “letter size” footprint. Designed for flexibility, the AP-507 offers exceptional performance whether used as a standalone stereo unit or paired for advanced configurations like bi-amp mode or high-power BTL mode (350W/8 ohms). Its compact size and versatility also make it an excellent choice for enhancing AV surround sound systems.
TEAC Custom NCOREx® Redifines Compact Stereo Amplification
The AP-507 is equipped with TEAC’s own custom tuned new generation “NCOREx®” power amplifier module manufactured by Hypex in the Netherlands. The advanced “x” generation NCORE technology delivers an immersive, three-dimensional soundstage and a more expansive spatial presence. At the heart of its superior sound is TEAC’s in-house designed dual-mono buffer amplifier, refined with meticulous attention to component and circuit detail for unparalleled clarity and richness.
Encased in a robust chassis, the AP-507 features a 2.8mm thick semi-floating aluminum top plate and an innovative 3-point Stress-Less Isolation Foot system. This precision-engineered design minimizes vibrations, creating a more open and natural listening experience.
Key Features
- Hypex “NCOREx”: New generation amplifier module custom-modified to TEAC’s specification.
- Compact / High Power: 170W+170W (4ohm), 350W (8ohm) BTL
- Fully Balanced Circuit Design on all stages
- Proprietary Dual-Mono Buffer Amplifier: Retuned for superior sound quality
- High-Capacity Power Supply: Large toroidal transformer and 18,800 μF capacitors par channel
- Three Drive Modes: Stereo, Bi-Amp and BTL
- Ideal Amplifier Choice for AV Surround Systems
- XLR / RCA Inputs
- Large Screw-Type Speaker Binding Posts
- Trigger In / Through
- Compact, “Letter Size” Footprint: Ideal for desktop use.
- Rugged Aluminum and Steel Chassis
- Semi-Floating 2.8 mm Thick Aluminum Top Panel
- Stress-Less Isolation Foot: Designed for clear focus and natural timbre.
- Silent Operation: Fan-less design for minimal noise.
- Dual Pointer VU Meters; 4-step dimmer / 2-step sensitivity switch.
- Auto Power-Saving Function
- Available in Silver and Black
The AP-507 will be available to purchase spring 2025 from TEACUSA.com and select dealers. The MSRP is $2199 (USA) / €1899 (EU) / £1899 (UK).
Specifications
- Maximum effective output（1kHz): [STEREO, BI-AMP] 170W + 170W（4 Ω), 95W + 95W（8 Ω) [BTL] 350W（8 Ω)
- Rated Output (1% THD, 1kHz): [STEREO, BI-AMP] 125W + 125W（4 Ω) , 70W + 70W（8 Ω) [BTL] 230W（8 Ω)
- Allowable speaker impedance: [STEREO, BI-AMP] 4 Ω to 16 Ω [BTL] 8 Ω to 16 Ω
- Total harmonic distortion: 0.0015%（8 Ω、1kHz, 12.5W）
- S/N ratio: 113 dB （8 Ω, 1kHz）
- Frequency response（8Ω、1kHz、1W）: 10 to 50kHz(+0dB, −5dB)
- Input sensitivity ( 8 Ω, 1% THD output): RCA 0.66V, XLR 1.3V
- Input impedance (RCA/XLR): 10k Ω or more
- Power supply: AC 220–230 V, 50/60 Hz (Europe) AC 120 V, 60 Hz (USA/Canada)
- Power consumption: 58W
- External dimensions (W × H × D, including protrusions): 290mm x 84.5mm x 271mm, 11 1/2″ × 3 3/8″ × 10 3/4″
- Weight: 4.4kg (9 3/4 lb)
- Included accessories: Power cord × 1, Rubber pads × 3, Owner’s manual
