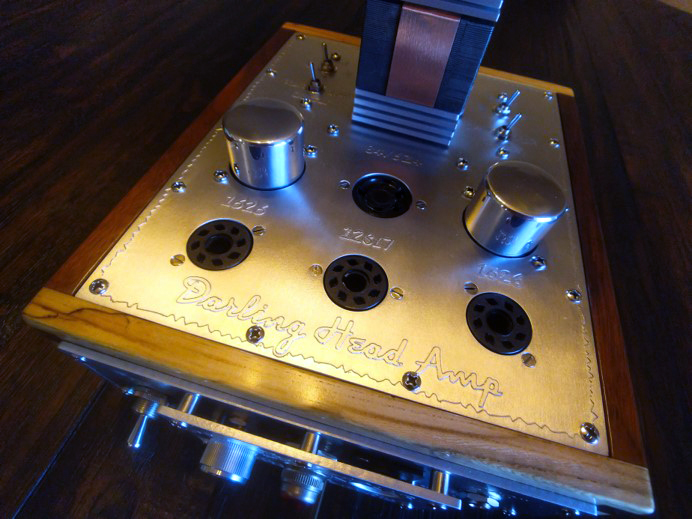

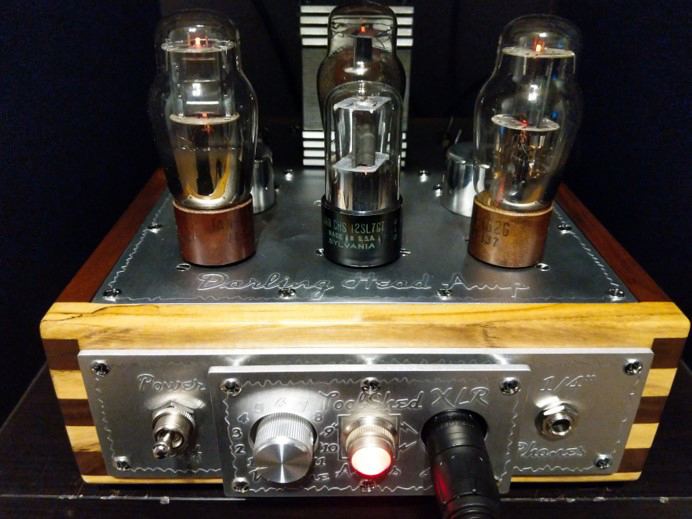

In the Desert: Toolshed Amps Darling Head Amp

Toolshed Amps Darling Head Amp ($2,595 shipped with tubes).

Features

  • CUSTOM-WOUND, SINGLE-SECONDARY (Order either “Low” or “High”) OUTPUT TRANSFORMERS
  • CHOKE-FILTERED POWER SUPPLY
  • TUBE-RECTIFIED, DC FILAMENT SUPPLIES (Super-Low Noise-Floor)
  • Point-To-Point, Hand-Wired (NO PRINTED CIRCUIT BOARDS)
  • 300% Duty-Rated 1% Metal-Film (PRP/Takman/Kiwame) and (Welwyn/Mills) Wirewound Resistors CHANNEL-MATCHED to Less Than 0.5%
  • Carling Switches/CMC and EIZZ Connectors
  • 3mm (1/8″) Etched and Brushed 6061 Aluminum Front, Back, Top and Bottom Plates
  • Hand-Polished, Finger-Joined, 2Tone/Figured-Hardwood Amplifier Base. (check availability of pairings)
  • LIMITED LIFETIME WARRANTY TO ORIGINAL PURCHASER. (Tubes 30 Days).

Specifications

850 mW@32 Ohm (Low Impedance OT’s) OR 700mW@300 Ohm (High Impedance OT’s)
25Hz-32KHz +/-3db@ Less Than 1.0%THD to either 32 Ohms (Low), OR 300 Ohms (High)

Input Impedance: 50K
Input Sensitivity: 1.43v To Full Output (Pre-Amp/Line-Stage Optional, Sources May be Directly Connected)
S/N Ratio: -91db Below Full Output (Exceptionally Quiet Noise-floor)
Inputs: Two (2) Switchable on RCA’s
Gain Adjustment: Stereo Volume Control
Switched Outputs: 4-Pin XLR (Balanced), 1/4″ Stereo Jack (Single-Ended)
Tube Complement: One Type 84/6Z4 Rectifier, One 12SL7/2C52 Driver, and Two 1626 Output Tubes.
