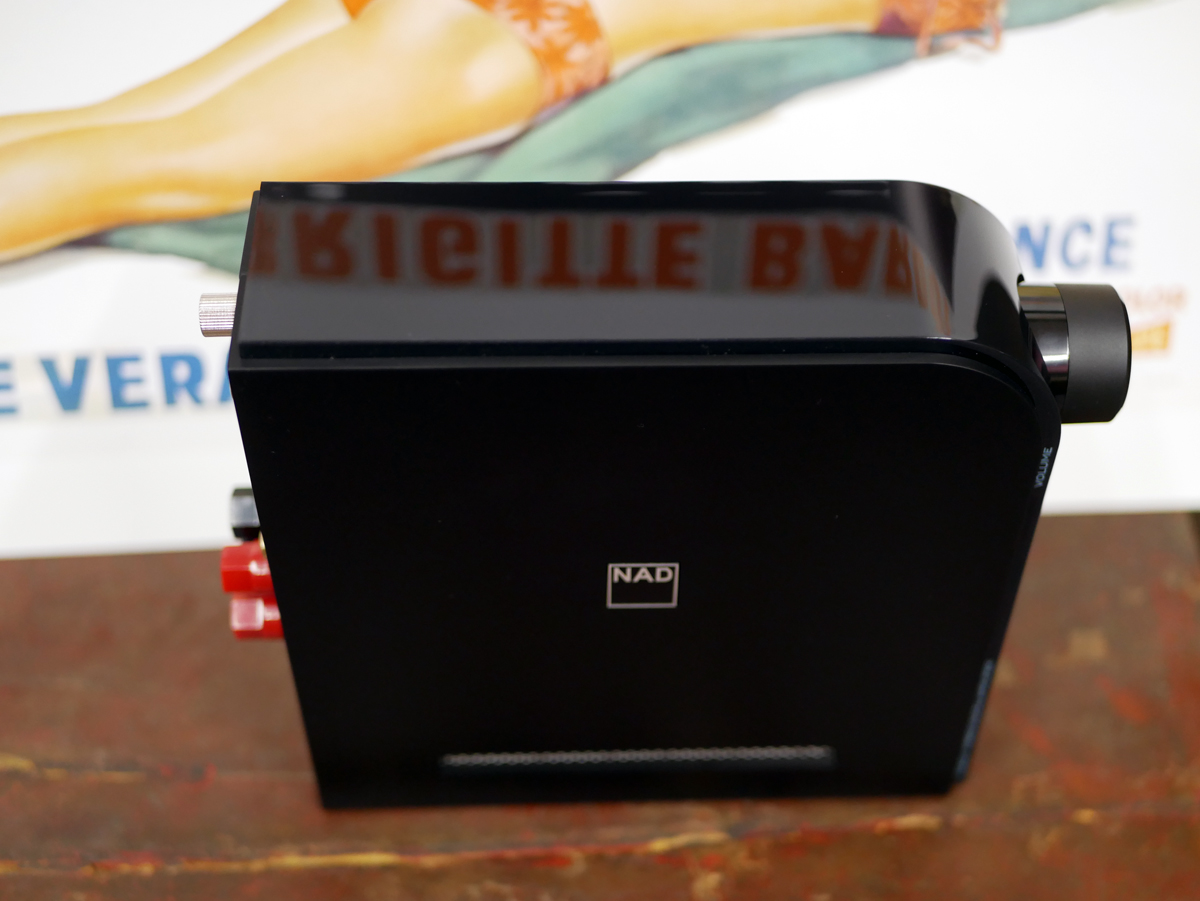

In Barn: NAD D 3020 V2 Hybrid Digital DAC Amplifier

NAD D 3020 V2 Hybrid Digital DAC Amplifier ($399.00).

Specifications

Rated Power at 8 ohms: 2 x 30 Watts
IHF Dynamic Power 8 ohms: 2 x 60 Watts
4 ohms: 2 x 100 Watts
2 ohms: 2 x 150 Watts
Signal/Noise Ratio (A-weighted, ref. 1 Watt): ≥90dB
Channel Separation 1kHz: ≥75dB
10kHz: ≥65dB
Channel Balance: 0 ±0.3dB
Frequency Response (20Hz – 20kHz): 0dB to -0.3dB
Total Harmonic Distortion: ≤0.005%
Maximum input level: 5V
IMD (SMPTE): 0.02%
IMD (CCIF): 0.003%

MM Phono Input

Phono Signal-to-Noise Ratio:

82 dB (200 ohms source, A-weighted, ref. 500 mV out)
76 dB (MM cartridge source, IHF; A-weighted, ref. 500 mV out)

Input sensitivity: 1.15 mV (ref. 500 mV out, Volume maximum):
Maximum input signal at 1kHz: >90 mVrms (ref. 0.1 % THD)
Frequency response: ±0.3 dB (20 Hz – 20 kHz)

General

Standby Power: ≤0.5 Watts
Supports bit rate/sample rate up to 24/192 (via Digital Audio input)
Unit Dimensions (W x H x D) Gross: 58 x 186 x 219mm / 2 5/16 x 7 3/8 x 8 5/8”
Net Weight: 1.38kg (3.05lb) /
Shipping Weight: 2.1kg (4.6lb)
